MyChron5 1T

Manufacturier
AIM
Modèle
Mychron 5
No de produit :
AIM-MYCHRON5

Livraison gratuite aux États-Unis USA flag

* La livraison est gratuite pour toute commande de 200$ et plus, à l'EXCEPTION des commandes contenant un ou des karts.

Un frais fixe de 200$ s'appliquera alors à la commande.

499,95 $ USD



Aim Mychron5 GPS Laptimer with Sensor for Kart Racing, enters a totally new dimension: besides sampling all your kart data, the Mychron5 features all the advantages of a new concept GPS plus a lot of new functions, designed to provide more complete and reliable information.

Lap and split times, speed, RPM and one temperature as well as position on track, acceleration and much more.

The MyChron5 has been designed to provide either basic info to newbies and the most sophisticated data to karting professionals.

1T means the dash is made and comes with one temperature sensor

Partager ce produit :

Caractéristiques

Fantastic readability

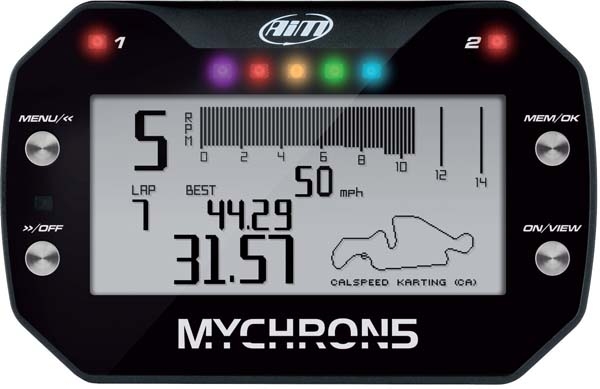

To maximise readability of data, you need plenty of room. That is why MyChron5 features a wide 268x128 pixel graphical display. The screen can be backlit in one of the seven available colors also the incorporated light sensor makes brightness and contrast ideal in all light conditions.

Choose Optimal Layout For Your Data

Lap and split times, best lap, RPM, gear number, track map and much more are shown in pre-configured pages: you will be able to choose the page layout you prefer to better monitor your data. At the end of your session, you can recall the summary of your three best laps: lap time, max/min RPM, speed and temperature. For your best lap, you will also see splits and best theoretical time.

Multifunctional LEDs giving information on laptimes, rpm and temperature

MyChron5 features five individually configurable RGB LEDs: you will choose color and value thresholds for their activation. In addition, they can be configured to show your best lap/split time, monitor RPM level and even signal the right moment for gear shift.

You can configure alarm LEDs as well, in order to turn them on/off depending on the values you selected including water temperature or any other parameter you may need.

Wireless data download with Wi-Fi connection

MyChron5 offers the opportunity to download the data wirelessly, using an easy and safe Wi-Fi connection: no data key or PC connection are needed anymore. Wi-Fi data transfer is easily configurable via PC or keyboard. In case of a connection of more than one gauge/PC (a typical situation in a team) it is possible to transfer data to/from all MyChron5 devices and PC's at the same time. In this case you would need to buy an access point, which will act as a bridge between
the gauges and the PC's.

Race Studio 3: the best tool to understand how to go faster

At the end of each session, your data can be downloaded and analysed in depth on your PC with Race Studio 3 software: charts, graphs and histograms will help you to understand your performance, finding out what needs to be improved.



Aim Mychron 5 Key Features

  • Integrated 10Hz GPS
  • Wide Graphical Display With Multicolour Configurable Backlight Illumination
  • Ambient Light Sensor
  • Completely Configurable Pages
  • Calculated Gear Number
  • 5 Freely Configurable RGB Shift Light LED's
  • 2 Freely Configurable RGB Alarm LED's
  • Nylon Body ‐ Metallic Pushbuttons
  • Rechargeable Lithium Battery Pack
  • WiFi Connection
  • 4Gb Memory
  • Fully Compatible With MyChron4 Add-ons
  • Waterproof IP65
Spécifications techniques

GPS: Integrated
INERTIAL PLATFORM: Included
WI-FI CONNECTION: Included
DISPLAY RESOLUTION: 268x128 pixel
BACKLIGHT: 7 configurable RGB colors
AMBIENT LIGHT SENSOR: Included
MULTIFUNCTION LEDS: 5 RGB LEDs*
ALARM LEDS: 2 configurable
RPM SAMPLING FREQUENCY: 50 Hz
BODY: Glass fiber reinforced Nylon
PUSHBUTTONS: Metallic
BATTERY: Rechargeable Lithium
MEMORY: 4 Gb
DIMENSIONS:137 x 88 x 30 mm
WEIGHT: 390 g
WATERPROOF:IP6
